11mm 13mm 15mm Sa 249 Tp 316l Stainless Steel Tube

Mingyang Steel (Jiangsu) Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

11mm 13mm 15mm Sa 249 Tp 316l Stainless Steel Tube

Brand Name : TISCO POSCO

Model Number : 201/304/304l/316l/2205

Certification : CE/SGS/ISO

Place of Origin : china,wuxi

MOQ : 1 ton

Price : $2600/ton

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3000ton/month

Delivery Time : 7-10days

Packaging Details : wooden box

name : 3 stainless steel pipe

Steel grade : 300 Series,400 Series,200 Series,304L,316L etc

Type : Welded,Seamless

Welding line type : ERW,Seamless,Spiral Welded,EFW,weld/seamless

Standard : ASTM,JIS,AISI,DIN

Thickness : 1mm-40mm,According To Your Demand

Outer diameter : 6-630mm,6mm-630mm or customized

Length : 3000mm~6000mm

Shape : Round.square.Rectangle

Surface : Annealing,BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D

Technique : Cold Rolled Hot Rolled,ERW,Polished,welded

Finish : Brush Polish,hairline,160grit,mirror ETC

Contact Now

1.11mm 13mm 15mm Sa 249 Tp 316l Stainless Steel Tube





Was established in 2010, covers an area of 80000 square meters with abundant capital, advanced equipment, supply full, convenient transportation, and currently employs nearly 120 people. The company specializes in the production of stainless steeel bar, stainless steel coil, stainless steel plate, stainless steel tubes, stainless steel rods, and other stainless steel profiles. In addition, it also produces various alloy steel material. The main materials of the company′s products are TP304/304L, TP316/316L, TP321, 310S, 904L, S31803, 2520Si2, Monel400, etc.







Nam 304/316L Seamless Sanitary Stainless Steel Tube Manufacture on Sales
Standard ASTM, GB, JIS, DIN, EN, AISI
Material Grade TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310S
TP410 TP410S TP403
S31803/S32205 S32750 S32760
Outer Diameter Seamless Pipe: 4mm-812.80mm
Welded Pipe: single slit(Φ8mm-Φ630mm); girth(Φ630mm-Φ3000mm),
Thickness Seamless Pipe: 0.5mm - 60mm
Welded Pipe: single slit(0.5mm-25mm);girth(3mm-45mm)
Length 5.8-6.1 m or as customers' request
Tolerance Acording to the Standard.
Surface 180G, 320G, 400G Satin / Hairline
400GMirror finish
Test UT, ET, HT, RT,ect, and others according to the standard,or as the requests of the customers
Certificate ISO9001-2008,ASME, PED
Delivery Time 30-60Days, Depends on quantity







2.chemical composition





Chemical Composition of Material
Material


Composition
201 202 304 316L 430
C ≤0.15 ≤0.15 ≤0.08 ≤0.035 ≤0.12
Si ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00
Mn 5.5-7.5 7.5-10 ≤2.00 ≤2.00 ≤1.00
P ≤0.06 ≤0.06 ≤0.045 ≤0.045 ≤0.040
S ≤0.03 ≤0.03 ≤0.030 ≤0.030 ≤0.030
Cr 13-15 14-17 18-20 16-18 16-18
Ni 0.7-1.1 3.5-4.5 8-10.5 10-14
Mo       2.0-3.0

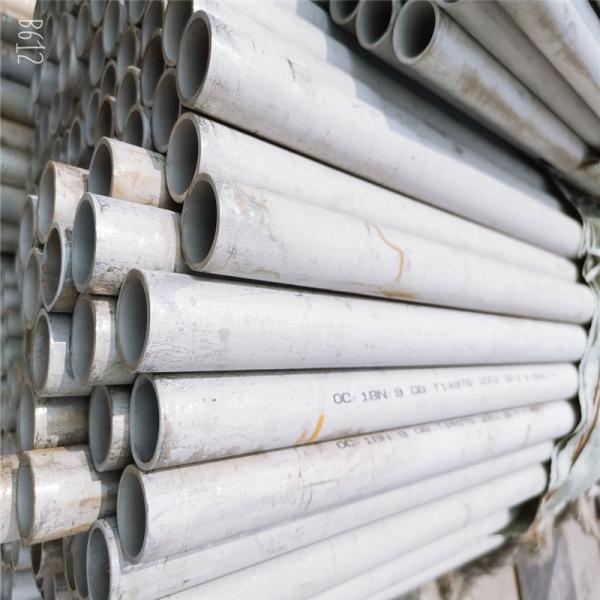

3.product show



11mm 13mm 15mm Sa 249 Tp 316l Stainless Steel Tube



11mm 13mm 15mm Sa 249 Tp 316l Stainless Steel Tube



11mm 13mm 15mm Sa 249 Tp 316l Stainless Steel Tube











4.mechanical property



Mechanical Property Material Item 201 202 304 316
Tensile Strength ≥535 ≥520 ≥520 ≥520
Yield Strength ≥245 ≥205 ≥205 ≥205
Extension ≥30% ≥30% ≥35% ≥35%
Hardness (HV) <105 <100 <90 <90
